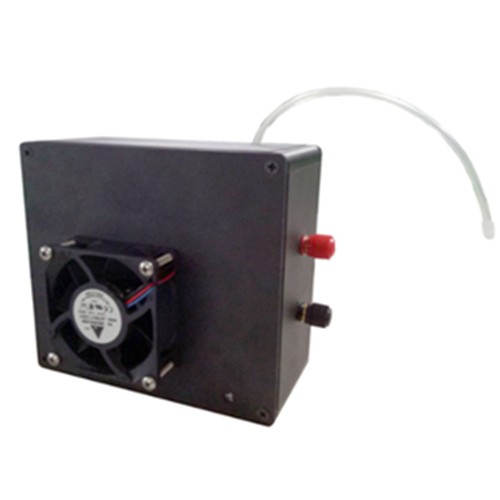

120W Air Cooling Hydrogen Fuel Cell Stack
The fuel cells are all based on Winocean's PASH technology. This technology can ensure the stable and reliable operation of air-cooled self-humidifying fuel cells in various complex and changeable natural environments.
The fuel cell is a complete fuel cell system, but its high level of integration makes the entire system structure extremely simple. The whole system includes: fuel cell stack, fan, electronic control board and solenoid valve. 300W rated power, small form factor and excellent environmental adaptability make it ideal as a mobile backup power supply and vehicle auxiliary power supply.
At the same time, it can also have a good application in small vehicles such as electric bicycles
| 主要技术指标 | |||||
| Inspecton Items ＆ Parameter | |||||
| 检验标准Standard | 实测结果Analysis | ||||
| 参数/型号 Parameters/model | |||||
| 输出性能Output | 额定功率 Rated power | 120W | 130W | ||
| 额定电压 Rated voltage | 12V | 12V | |||
| 额定电流 Rated current | 10A | 10.8A | |||
| 直流电压范围 range | 10-18V | 12V | |||
| 效率 efficiency | ≥50% | ≥53% | |||
| 燃料H2 | 氢气纯度 purity | ≥99.99%（CO＜1PPM) | 99.99% | ||
| 氢气压力 Pressure | 0.045～0.06Mpa | 0.05Mpa | |||
| 氢气耗氢量Consumption | 1.4ml/min | 1.51ml/min | |||
| 环境特性Environmentalcharacteristics | 工作环境温度Temperature | -5～35℃ | 20℃ | ||
| 工作环境湿度, Humidity | 10%～95%(No mist) | 60% | |||
| 储存环境温度 | -10～50℃ | ||||
| Storage ambient temperature | |||||
| 噪声 noise | ≤60dB | ||||
| 物理参数physical parameter | 电堆尺寸（mm) | 98*104*70 | 重量(g) | 560g | |
| 系统尺寸 (mm) | 98*108*73 | 重量(g) | 1040g | ||
| 含风机With blower | |||||
